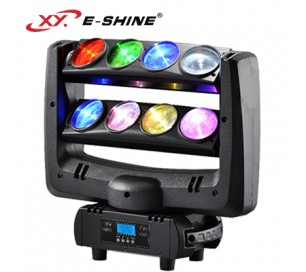

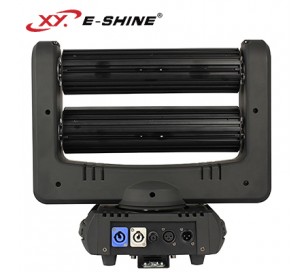

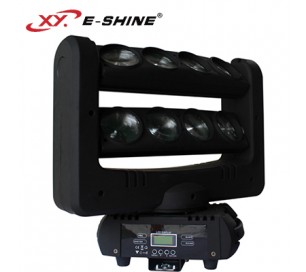

XY-8012
  • XY-8012
  • XY-8012
  • XY-8012
  • Product Specifications
  • Download Attachment
  • Product Name:XY-8012

    • Product Number:8

    Introduction:

    ♦Voltage: AC100-240V 50/60HZ

    ♦ Power: 130W

    ♦ Control signal: DMX512, master-slave controllable or automatic operation

    ♦Packing size: 480*465 *230mm

    ♦ Net weight: 7KG

    ♦ Gross weight: 8.5KG

Prev:XY-2512

Next:XY-3610Z

  • Details
  • Image Display
  • Power Supply: AC100-240V, 50-60Hz

    Power Consumption: 130W

    Light Source: 8*12W Quad-color RGBW

    8*10W White high brightness LEDs

    PAN: 540 degree with 16bit rotate

    Tilt: 230 degree with 16bit rotate

    Strobe: Variable strobe speeds

    Dimmer: 0~100% linear dimmer

    Effect: Delivering long-throw colorful multi-beam effects,

    Thousand of patterns by changing colors, Moving, Dimmer and strobe.

    Control mode: DMX512, master-slave and sound activated

    controllable or auto operation

    DMX Channel: 13/17 DMX Channels

    Control Panel: LCD display

    Connectors: 3 -pin XLR signal connector input and output

    Dimensions: 480*465 *230mm

    Net Weight: 7kg

    Gross Weight: 8.5kg
