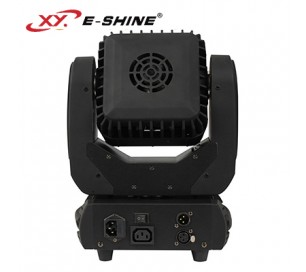

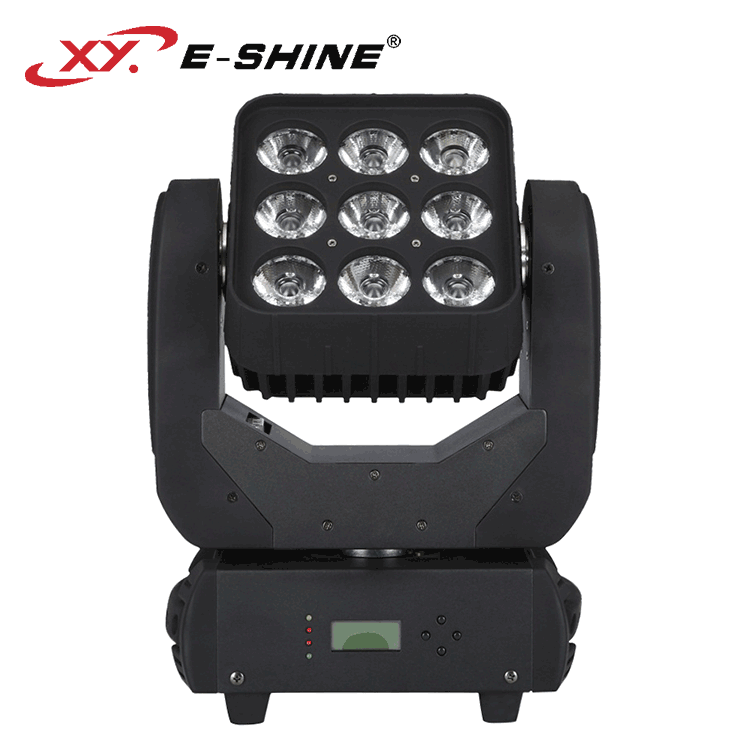

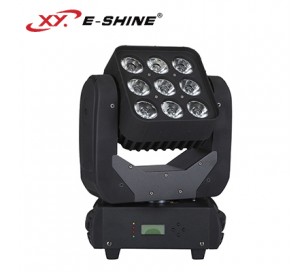

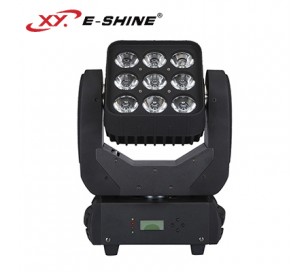

XY-912M
  • XY-912M
  • XY-912M
  • XY-912M
  • Product Specifications
  • Download Attachment
  • Product Name:XY-912M

    • Product Number:9

    Introduction:

Prev:XY-3603

Next:XY-2512

  • Details
  • Image Display
  • Voltage: AC90-240V, DC24/12V150W

    Light source: 9 Cree LEDs

    Life: 50000H

    Color: RGBW four colors

    Lens: 10 degree beam lens

    Counting and positioning system: dual optocoupler, Hall positioning

    Control method: international standard DMX512, self-propelled, master-slave, optional wireless control

    Channel: 1/14/46 channel

    X/Y axis: X-630°/Y-270°, fast running speed, quiet, speed

    Dimming: 0-100% linearly adjustable

    Strobe: 1-25 times / sec

    Display: LCD display

    Working environment: indoor, -15 ° -40 ° protection level: IP20

  • ♦ Lens: 10 degree beam lens

    ♦ Heat dissipation method: High thermal conductivity aluminum substrate, aluminum plate cooling, fan cooling, overheat protection

    ♦Drive mode: LED dot matrix single control adopts constant current drive, motor adopts high current silent drive
