POWER SUPPLIES:100-240V 50/60Hz
INPUT POWER:450VA
LAMP SOURCE:19 Ostar RGBW LEDs
LED Nominal Wattage: 15W
LED Average Life: 50,000 h
OPTICS:4°-60° Electronic Zoom Range
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash /sec; Fast Strobe: 25 flash /sec
CONTROL AND PROGRAMMING
Control channels: 21/35/78/92/97CH
DMX protocol signal: USITT DMX 512
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial

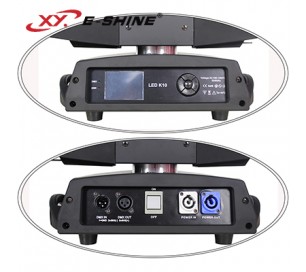

DMX signal connection: 3 XLR input and output Powercon connection: input and output
N.W:15KG
