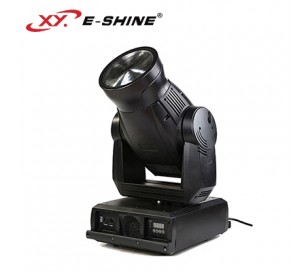

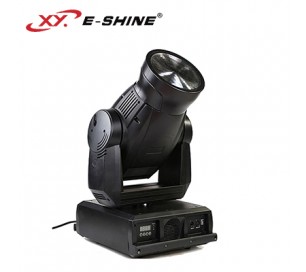

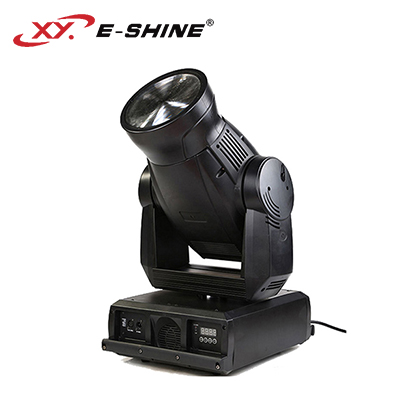

XY-B1200/B1500
  • XY-B1200/B1500
  • XY-B1200/B1500
  • Product Specifications
  • Download Attachment

  • Product Name：XY-B1200/B1500

    • Product Number：8

    Introduction：

    ♦ Total power: 1450W/1750W

    ♦ 2 pattern wheels, rotatable, each pattern wheel consists of 6 pattern pieces.

    ♦ Motorized zoom 4.2° to 22°

    ♦ Horizontal 540°, 8 or 16 bit resolution

    ♦ Vertical 270°, 8 or 16 bit resolution

Prev：XY-470

Next：XY-B200-2

  • Details
  • Image Display

  • ◆ 21 control channel mode selection.

    ◆OSRAM HTI 1200W/D7/60 HTI1500W/D7/60 short arc gas discharge bubble.

    ◆ Total power: 1450W/1750W

    ◆LCD liquid crystal Chinese display system, which can set personalization function very intuitively.

    ◆ 2 pattern wheels, rotatable, each pattern wheel consists of 6 pattern pieces.

    ◆ 1 color wheel, 6 colors for each color wheel plus white light, with rainbow effect.

    ◆ 0-100% electric dimming, can be converted to flash.

    ◆ Power zoom 4.2° to 22°.

    ◆ Horizontal 540°, 8 or 16 bit resolution.

    ◆ Vertical 270°, 8 or 16 bit resolution.

    ◆The photoelectric reset system is used horizontally and vertically. When accidental misoperation occurs, the reset can be automatically retrieved.

    ◆ Size: 536mm × 409mm × 757mm.

    ◆Net weight: 46.5kg
