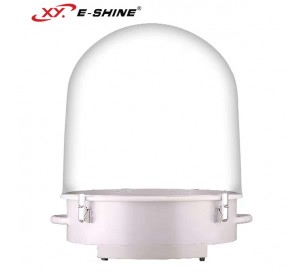

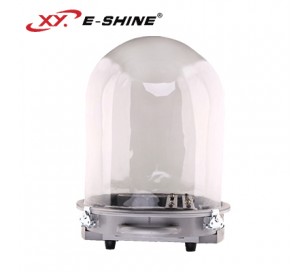

XY-SC100
  • XY-SC100
  • XY-SC100
  • Product Specifications
  • Download Attachment
  • Product Name:XY-SC100

    • Product Number:6

    Introduction:

    ♦ Working environment temperature (°C): -20°-40°

    ♦ IP Protection Index: IP54

    ♦ Control: DMX512

    ♦Features: Rainproof, outdoor use

    ♦Installation: Can be laid flat, side hanging, hanging

Prev:XY-SC1000

Next:XY-SC200

  • Details
  • Image Display
  • ■Environment Working Temperature: -20°- 40°

    ■Height: 560mm        Diameter:420mm

    ■N/W:9kg

    ■Protection degree: IP54

    ■Control: DMX512

    ■Installation: Can be flat, side hanging, hanging, in and out of the wind pipe can rotate to any angle.

    ■Function: Raining proof, for outdoor use

    ■Material: Transparent cover is made by the US imported engineering plastics with high lightpenetration,

    antiultraviolet radiation, not yellow, not easily broken.

    ■Signal And Power Connections: With two waterproof dmx cable and two waterproof power line.

    ■Suitable: 100W,120W beam lights and similar sized lights.

    ■Warranty: 1 year

    Note: At least 80mm is reserved for the total height of the luminaire and the total height of the rain cover
