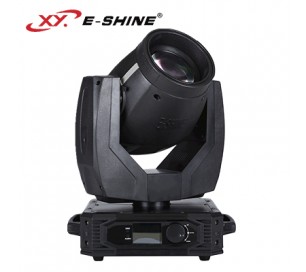

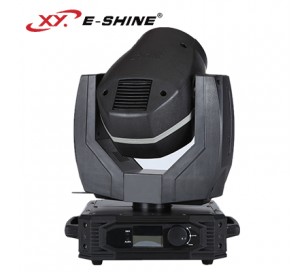

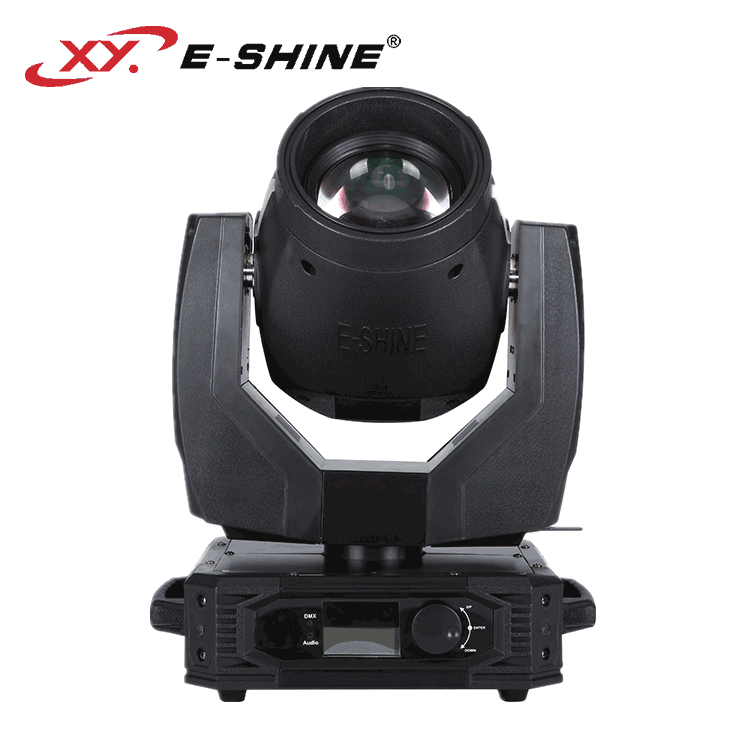

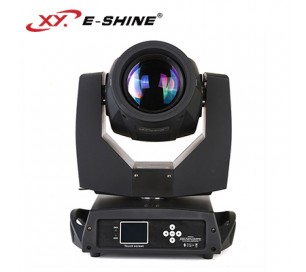

XY-B230
  • XY-B230
  • XY-B230
  • XY-B230
  • Product Specifications
  • Download Attachment
  • Product Name:XY-B230

    • Product Number:8

    Introduction:

    ♦ Light bulb: OSRAM 230W

    ♦ Channel control mode: international standard DMX512 signal, voice control, self-propelled

    ♦ Color: 14 colors + white light, realize rainbow, half color, full color, water, etc.

    ♦ Accuracy scan: 0.008° horizontal and 0.004° vertical.

Prev:XY-281W

Next:450 beam light

  • Details
  • Image Display
  • Voltage:AC100-240V 50/60 Hz

    Bulb: Osram lamp

    Lamp power: 230W

    Color temperature: 8,000 K

    Luminous flux: 9,600 lm

    Average life: 3,000 hours

    Zoom: from zero to 3.8°

    Channels:16/20 DMX channels , DMX512 signal

    Light output at 20 meters (65 feet): 59,760 lux

    Color wheel:replaceable color wheel with 14 colors + open ,

    Gobo wheel: replaceable gobo wheel with 17 fixed gobos + open

    High speed, rainbow effect

    Prism :8-facet prism

    Mechanical dimmer:PAN = 540°TILT = 250°

    Maximum speeds: PAN = 2.45 sec  TILT = 1.30 sec

    Resolution: PAN = 2.11°PAN FINE = 0.008°

    TILT= 0.98° TILT FINE = 0.004°

    Net Weight: 16kg
