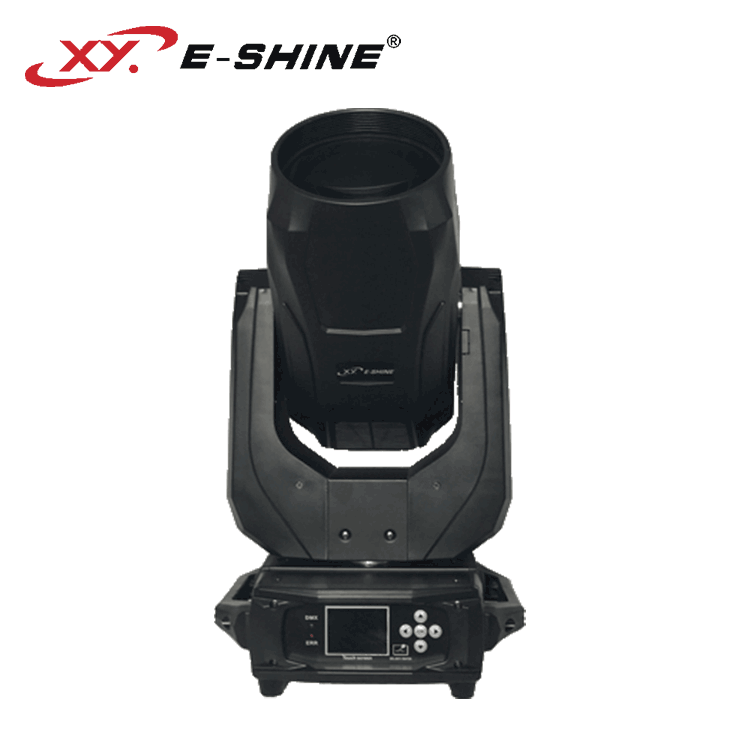

XY-281W
  • XY-281W
  • XY-281W
  • XY-281W
  • Product Specifications
  • Download Attachment
  • Product Name:XY-281W

    • Product Number:9

    Introduction:

    ♦ Rated voltage: AC110V-240V, 50/60Hz

    ♦ OSRAM SIRIUS HRI 281

    ♦ Parallel beam angle adjustable from 0° to 3.8°

    ♦ Seven-color effect

    ♦ Mechanical linear dimming 0~100% with 16Bit precision fine adjustment

Prev:XY-B200-2

Next:XY-B230

  • Details
  • Image Display
  • ■ Lamp: 280W osram SIRIUS HRI Lamp

    ■ Channel mode: 18 DMX512 Channel

    ■ Pan scan:540°(16bit) Electric correction

    ■ Tilt scan:270° (16bit) Electric correction

    ■ Amazing dot matrix ,four tact switch, 180° turning show

    ■ one color wheel, 13 colors + and open

    ■Gobo: 13 gobos(3 glass gobos) +white

    ■Colorful colors: seven-color effect

    ■Prisms:2 independent rotating prisms , 16facet circle prism and Honeycomb prism.    two-way rotating prism plate. beam angle can be freely scaled.

    ■ 0-100% mechanical dimming, mechanical dimming and free dimming available.

    strobe macro control available.

    ■ Lens optical system mechanical focus. beam angle 0~3.8°

    ■ Over heat protection

    ■ Voltage: AC110V-240V, 50/60Hz

    ■ power: 375W

    ■ IP Rate :IP20 Rate

    ■ Dimensions:310x240x580mm
